Block & Bleed Sizes
NPS ½ FP to NPS 16 SP
½″ FP to 16″ SPBlock & Bleed Connections
150# to 4500#, NPT, SW,
BW, Graylock and CustomBlock & Bleed Applications
Customizable with bubble tight
sealing, exotic alloys & metal seats.Block & Bleed Temperatures
-100°C to 675°C
-148°F to 1247°FBlock & Bleed Delivery
Standard Delivery (16-20 weeks)
Expedited delivery available.Block & Bleed Quote
Click here to receive a
Block & Bleed Valve quote.
M-Class Valve Downloads
M-Class Valve Catalogues
Overview (2MB)Printable (2.4MB)M-Class Valve Presentations
Overview (70MB)PDF (3.6MB)M-Class IOM Manual
IOM Manual (0.6MB)

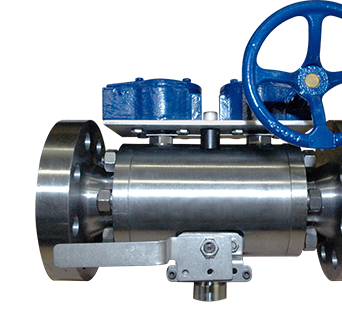

Block & Bleed Valve Overview
M-Class Block & Bleed Valves are not only fully bi-directional, they seal bubble tight with full differential pressures or a 1psi pressure drop. Features include: High pressure options, (Up to Class 4500), NACE compatibility, live-loaded metal seats, our proprietary boronizing process, arcuate cut balls, exotic alloys, and integral body options. We can fully customize them with varying end caps, different size trim sets, and flexible face to face dimensions.

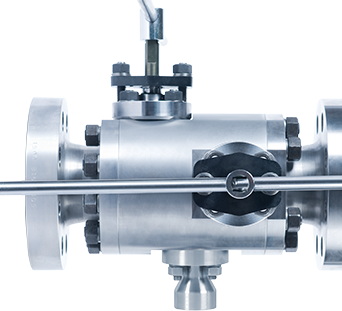

Configurations
The Gosco Block & Bleed valve is essentially two bi-directional valves with a bleed valve between them. This means we meet all definitions of API 6D for double block & bleed (DBB), double isolation & bleed (DIB), and OSHA double block & bleed (DBB). Not only that, our valves seal bubble tight in both directions with a 1 psi drop, or full differential. We offer valves in pressures up to Class 4500, in exotic alloys, and we are NACE approved.

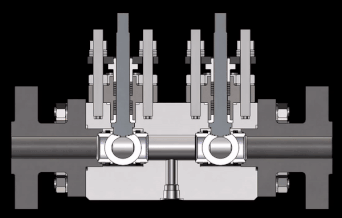

Bi-Directional Sealing
Each of the two ball/seat assemblies in the Gosco M-Class Block & Bleed Valve has
bi-directional sealing abilities. This means that regardless of which direction the valve is installed in the pipeline, the high pressure from either end can’t reach the bleed port, and high pressure from the bleed port can’t reach either end. The M-Class Block & Bleed
Valve provides true double isolation, since both ball/seat assemblies can seal in either direction and at any pressure differential.Superior Trim Hardening
BORONIZING is a thermo-chemical surface hardening process that creates a surface layer that’s so hard, it can’t be measured on the Rockwell C Scale. We use Inconel 718 because it is the best overall metal for corrosion, high temperature, and wear resistance. Our PROPRIETARY BORONIZING has a layer depth over 100 microns (0.004”) and a hardness between HV 2500-2700.
Compared to HVOF coatings, BORONIZING is:
Substantially harder, markedly more wear resistant, impervious to corrosion, and is capable of handling huge temperature shocks without spalling or flaking.Seat/Spring Design
Gosco's patented seat/spring design is perfect for powder/catalyst applications. When powder gets trapped in the spring cavity, it causes the valve to “lock up”. To solve this issue, Gosco uses a completely different approach to the competition - instead of trying to seal the spring from the media, we deliberately open up the cavity around the spring. This allows the media to flow around the spring, but also allows it to escape just as easily. Media never gets trapped in the valve, so we never have issues with valves "locking up".
Tripod Mounting System
The M-Class Tripod Mount allows you to install the valve in any orientation without supporting the actuator, and we use Finite Element Analysis (FEA) to guarantee it. The very unique design also eliminates actuator misalignment. Three evenly-spaced prongs define a plane, preventing the actuator from rocking. When paired with a CNC machined mounting plate that cannot move left to right or back and forth, the actuator is guaranteed to be aligned correctly. Additionally, the packing can be adjusted without having to remove the actuator, and the three tripod prongs act as a heat sink to minimize the amount of heat that gets to the actuator.
Exotic Alloys
If you can cast it, or it is available in bar stock/forgings, Gosco can create your own bespoke M-Class 3-Way Diverter Valve, even with metals that require vacuum casting (e.g. titanium). We are not restricted to making merely the body from exotic alloys, as we can manufacture all components to your exact specifications, right down to the bolting. Our engineering team at Gosco Valves has extensive experience in corrosive applications, and we can recommend the best material to use for your specific application.
Made To Order
Not all processes are the same, and applications exist where standard valves just don't cut it. Our strength is being able to find solutions to problems that other manufacturers simply don’t have the capability to solve. Gosco has a team of specialized engineers, an independent R&D facility, cutting edge design technology and decades of experience in severe service applications. We also have a “Think Outside the Box” philosophy, and a “Say Yes” attitude, so when you need a BESPOKE valve, made exactly to your specifications - you have come to the right company
Fast Track
What good is an elite custom ball valve if it can’t be delivered when you need it? Fast Track is our expedited delivery service, designed to help you meet near-impossible deadlines. The fee is calculated based on accelerated engineering & design, supplier expedite charges, air freight charges, extra manpower, and other associated costs. What does this buy you? The world’s best valve and a solid guarantee: If we don't deliver on time, we waive all Fast Track fees.
